Description

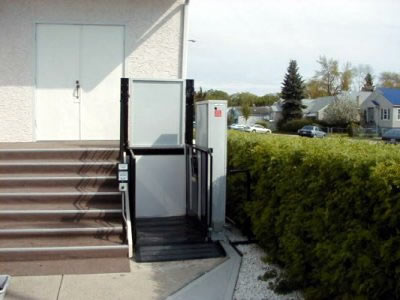

AmeriGlide's Commercial Atlas Vertical Platform Lift comes with many standard features to improve the accessibility of your business, while adhering to safety regulations. This weather resistant porch lift can be placed outside year-round and supports up to 550 pounds. It has a standard lifting height of 96 inches but can be upgraded to a 120 or 144 inch lifting height.

This Commercial wheelchair lift comes with a solid platform, solid sidewalls, keyed access (platform, lower landing, upper landing), two interlocks, an extra wide toe-plate, an emergency alarm, and an emergency light. It's ideal for shaft installations which will be required in nearly any commercial application at this height.

*For commercial installations please consult your local elevator branch for approval before beginning construction. Code requirements can very greatly from region to region.



Specs
  • Lifting Capacity550 lb
  • Standard Lift Height96"
  • Maximum Lift Height144"
  • PortableNo
  • Arrives AssembledNo
  • Drive SystemDirect Worm-Gear & Screw-Nut
  • Optional Drive SystemsNone
  • Battery Powered OptionYes
  • Constant Pressure Platform ControlYes
  • Emergency Stop Platform ControlStandard
  • Alarm ButtonStandard
  • Keyed Platform ControlStandard
  • Call-Send ControlsOne Direction with Key x2
  • Optional Call-Send ControlsTwo Direction Toggle, Two Direction Toggle with Key
  • Platform TypeSolid
  • Platform Size34" x 54"
  • Optional Platform Sizes40" x 54"
  • Platform ConfigurationStraight-Thru Access
  • Optional Platform ConfigurationsAdjacent Access
  • Upper Landing GateOptional
  • Upper Access RampNone Available
  • Lower Access Ramp18" Fixed Toeplate
  • Grab RailOptional
  • Guard PanelStandard
  • Maximum Stops3
