Description

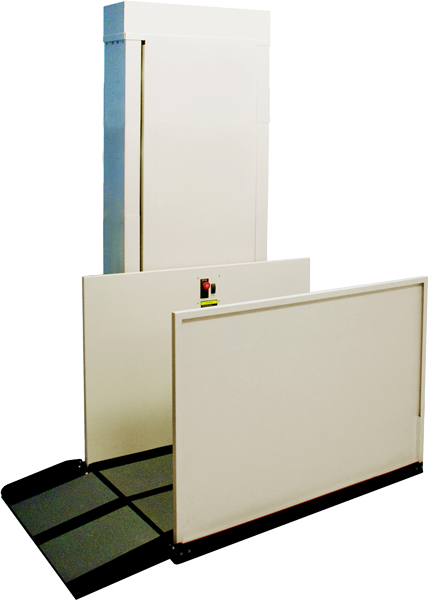

AmeriGlide's Hercules Vertical Platform Lift is an excellent value and comes standard with a wide variety of features needed for commercial compliance. It supports up to 600 pounds and has a standard 4 foot lifting height, but this can be upgraded to 6, 8, 10, 12 or 14 feet.

This commercial porch lift includes many safety features such as a 42" high guard panel, a solid platform and handrail, a fixed ramp, and more.



Specs
  • Lifting Capacity: 600 lb
  • Standard Lift Height: 53"
  • Maximum Lift Height Upgrade: 171"
  • Portable: No
  • Arrives Assembled: No
  • Drive System: 53" - 125" Acme Screw Drive, 149" - 171" Ball Screw Drive
  • Optional Drive Systems: None Available
  • Battery Powered Option: Yes
  • Constant Pressure Platform Control: Yes
  • Emergency Stop Platform Control: Included
  • Alarm Button: Optional Audible Alarm
  • Keyed Platform Control: Optional
  • Call-Send Controls: Optional Non-Keyed & Keyed Call-Send
  • Platform Type: Solid with Non-Skid Coating
  • Platform Size: 36" x 54" Platform (34" Usable Width)
  • Optional Platform Sizes: 36" x 60" (34" Usable Width), 42" x 54" (40" Usable Width)
  • Platform Configuration: Straight-Thru Access
  • Optional Platform Configurations: Same Side Entry-Exit, Adjacent Access
  • Upper Landing Gate: Optional
  • Upper Access Ramp: None Available
  • Lower Access Ramp: Fixed, Optional Automatic
  • Grab Rail: Included
  • Guard Panel: 42"
  • Maximum Stops: 3
  • Lift Speed (FPM): 10
