Harmar Summit AC Straight Outdoor Stair Lift


Description
Harmar Summit AC Straight Outdoor Stair Lift
The Summit Outdoor Stair Lift is engineered with a durable extruded aluminum track and marine-grade vinyl seating to handle rain, wind, snow, and temperatures from 0 degrees to 125 degrees. Includes header, internal chassis, and large weatherproof cover for protection of outside elements.
(Note: weight capacity is reduced to 250 pounds if the track length is 16 feet or longer.)

Outdoor Stair Lifts are not intended for use in snow and ice


Features:

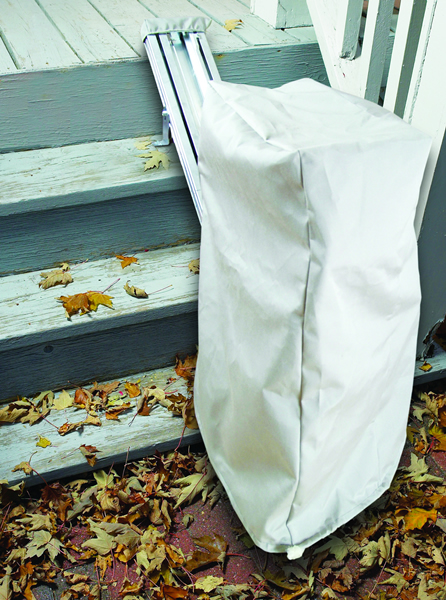

  • Header cover, internal chassis cover and a large weatherproof cover included
  • Rocker controls with constant-pressure functionality stop the lift immediately if the control is released
  • Mounts to the stairs (not the wall) on either side of staircase
  • Operates on standard 115V AC household current
  • Extruded aluminum track is available in custom lengths
  • Seat and footrest fold to save space
  • Seat cushions in exterior marine grade vinyl
  • Separate controls at top and bottom of stairs
*CT, MI and WA residents need to check their local code laws to ensure proper compliance.



Specs
  • Drive TypeCable
  • Battery PoweredNo
  • Self InstallableYes
  • Basic Installation IncludedNo
  • Standard Capacity350 lb
  • Max Track Length, Standard15.5'
  • Max Track Length, Optional25'
  • Track MaterialAluminum
  • Seat Width17.5"
  • Seat Depth14"
  • Swivel SeatYes
  • Flip-Up SeatYes
  • Flip-Up ArmrestsNo
  • Constant Pressure ControlsYes
  • Footrest Safety SensorYes
  • Unit Footprint, Non Folded24.5"
  • Unit Footprint, Folded14"
  • Track Footprint12"
  • Track Width8"
  • Call Stations IncludedWired
  • Rail Angle, Min30°
  • Rail Angle, Max45°
  • Digital Diagnostics DisplayNo
  • Key LockNo
