Stratos 600 AC Residential

Add to Cart

Additional Images

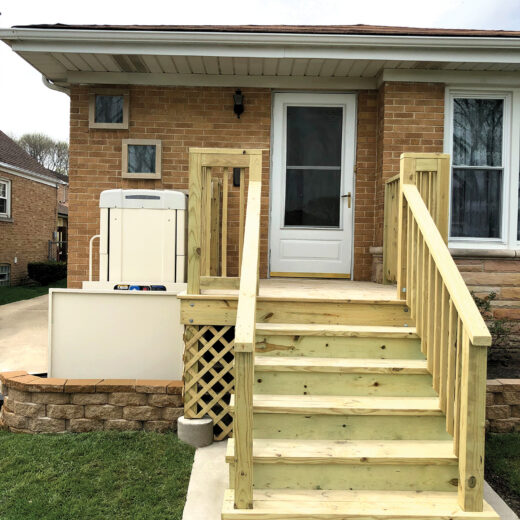

  • On Side of Deck - Front View

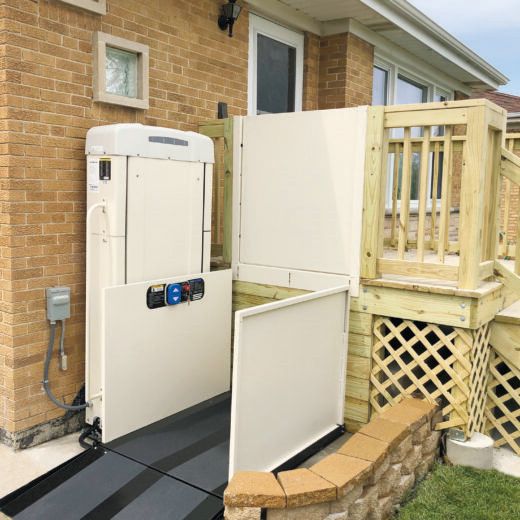

  • On Side of Deck - Side View

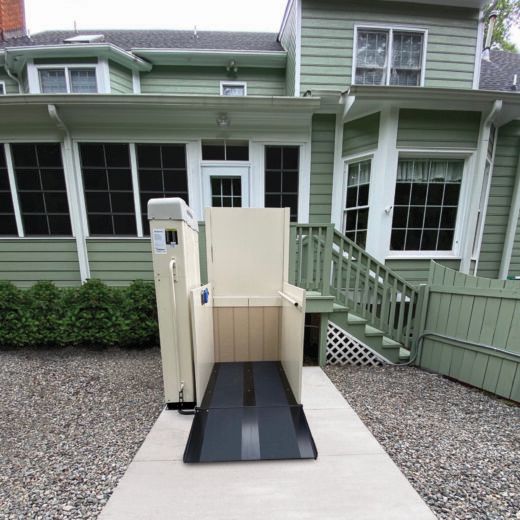

  • On Side of Deck - Angled View

Description
Stratos 600 AC Residential
The Stratos VPL represents a new generation and evolution in VPL's. New technologies introduced in the Stratos VPL make this VPL series more reliable, easier to use, easier to service, easier to troubleshoot, and the premiere market choice for platform lift solutions.

Innovation is at the heart of this next generation Vertical Platform Lift. The Stratos VPL is an outstanding choice for vertical lifting solutions in the home or in light commercial settings where an elevator is impractical or unnecessary.

Features:
  • Guardian System: 4 bright, high-contrast LED status lights give continual performance feedback from the lift's control board. Monitoring almost every critical system, Guardian can provide immediate feedback and guidance.
  • SteadyDrive: Ensures a smooth, quiet and stable lift.
  • ReadyUPS System: True battery back-up option that can deliver at least 5-cycles in the event of power loss.



Specs
  • Lifting Capacity:  750 lb
  • Standard Lift Height:  53"
  • Maximum Lift Height Upgrade:  171"
  • Arrives Assembled:  Yes
  • Drive System:  1" Diameter Acme Screw Drive
  • Optional Drive Systems:  None Available
  • Battery Powered Option:  Yes
  • Constant Pressure Platform Control:  Yes
  • Emergency Stop Platform Control:  Included
  • Alarm Button:  Optional
  • Keyed Platform Control:  Optional
  • Call-Send Controls:  One Per Stop Included
  • Optional Call-Send Controls:  Keyed and/or Wireless
  • Platform Type:  Solid with Non-Skid Coating
  • Platform Size:  36" x 48" (34" Usable Width)
  • Optional Platform Sizes:  36" x 60" (34" Usable), 42"x 54" (34" Usable), 42" x 60" (40" Usable)
  • Platform Configuration:  Straight-Thru Access
  • Optional Platform Configurations:  Same Side Entry-Exit, 90 Degree Adjacent Access
  • Upper Landing Gate:  Optional
  • Upper Access Ramp:  None Available
  • Lower Access Ramp:  36" Fixed or Auto-Folding Standard, Optional 42" Fixed or Auto-Folding
  • Grab Rail:  Included
  • Guard Panel:  36", Optional 42"
  • Maximum Stops:  3
  • Lift Speed (FPM):  10
  • Portable:  None Available
  • Other Options:  Fire-Rated Doors, Automatic Door Openers
