Stratos 750 AC Commercial


Description

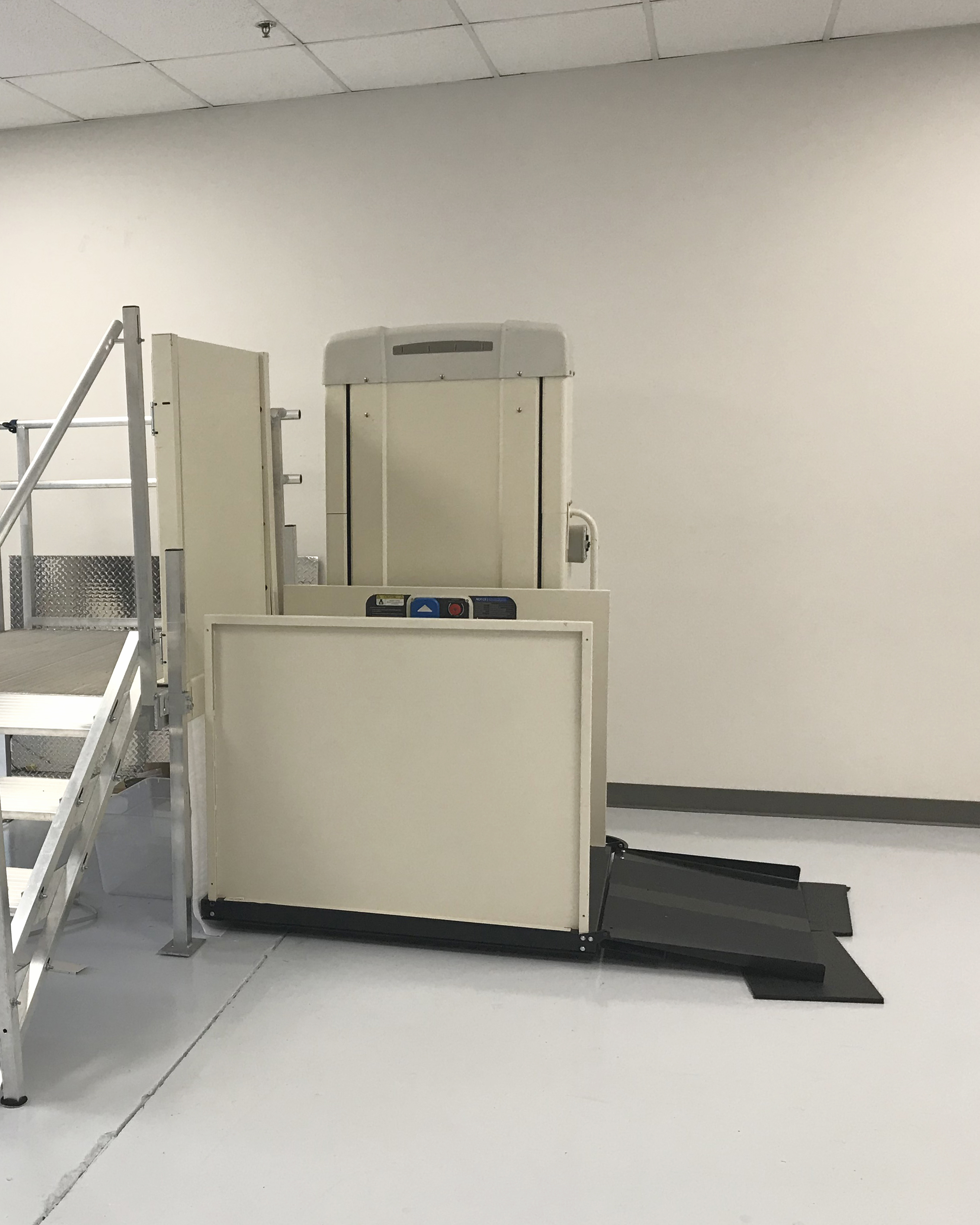

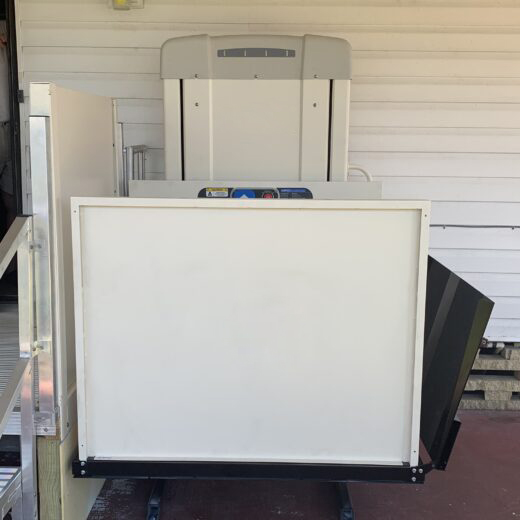

Stratos 750 AC Commercial
The Stratos VPL represents a new generation and evolution in VPL's. New technologies introduced in the Stratos VPL make this VPL series more reliable, easier to use, easier to service, easier to troubleshoot, and the premiere market choice for platform lift solutions.

Innovation is at the heart of this next generation Vertical Platform Lift. The Stratos VPL is an outstanding choice for vertical lifting solutions in the home or in light commercial settings where an elevator is impractical or unnecessary.

Features:
  • Guardian System: 4 bright, high-contrast LED status lights give continual performance feedback from the lift's control board. Monitoring almost every critical system, Guardian can provide immediate feedback and guidance.
  • SteadyDrive: Ensures a smooth, quiet and stable lift.
  • ReadyUPS System: True battery back-up option that can deliver at least 5-cycles in the event of power loss.
  • Certifications: ETL listed, CSA B44.1/ASME A17.5, Safety standard ASME A18.1, Rated commercial and residential.



Specs
  • Lifting Capacity750 lb
  • Standard Lift Height53"
  • Maximum Lift Height Upgrade171"
  • Arrives AssembledYes
  • Drive System1" Diameter ACME Screw
  • Optional Drive SystemsNone Available
  • Battery Powered OptionYes
  • Constant Pressure Platform ControlYes
  • Emergency Stop Platform ControlLighted Emergency Stop with Alarm
  • Alarm ButtonLighted Emergency Stop with Alarm
  • Keyed Platform ControlOptional
  • Call-Send ControlsOne Per Stop Included
  • Optional Call-Send ControlsKeyed and/or Wireless
  • Platform TypeSolid with Non-Skid Coating
  • Platform Size36" x 54" (34" Usable Width)
  • Optional Platform Sizes36" x 60" (34" Usable), 42"x 54" (34" Usable), 42" x 60" (40" Usable)
  • Platform ConfigurationStraight-Thru Access
  • Optional Platform ConfigurationsSame Side Entry-Exit, 90 Degree Adjacent Access
  • Upper Landing GateOptional
  • Upper Access RampNone Available
  • Lower Access Ramp36" Fixed or Auto-Folding Standard, Optional 42" Fixed or Auto-Folding
  • Grab RailIncluded
  • Guard Panel42"
  • Maximum Stops3
  • Lift Speed (FPM)10
  • Other OptionsFire-Rated Doors, Automatic Door Openers
