QuickServe II Dumbwaiter
$5,708.00
Plus Shipping
MSRP
- Brochure
- Specifications
- Owner's Manual
- Installation Manual

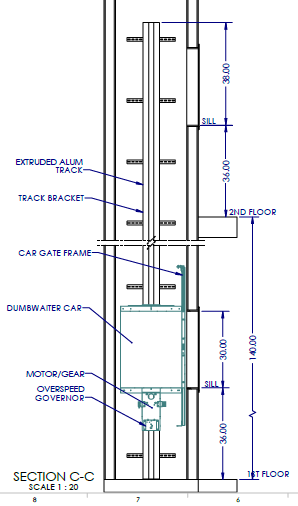

- 90 Degree Left Hand Drawing
- 90 Degree Right Hand Drawing
- Pass Through Drawing
- Single Front Entry Drawing
- Single Left Hand Entry Drawing
- Single Right Hand Entry Drawing
- Optional Fire Door - Dry Wall Install Drawing
- Optional Fire Door - Masonry Install Drawing
Additional Images
Description

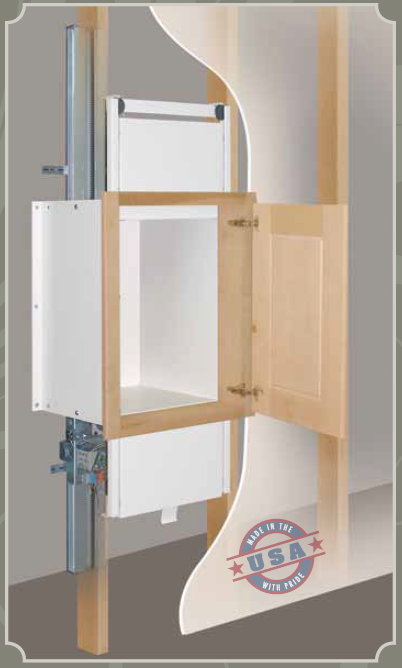

Plug and play simple installation makes installation easy and can be done in half the time as it takes to install other dumbwaiters. The QuickServe II uses a rack and pinion drive so there are no cables, chains, or drums to install. The entire motor and electronics assembly comes pre-assembled on the lower section of the track. Major features include:
- Rack and pinion drive
- No slack cable lock-ups
- Battery operated
- Fast and easy installation – plug and play
- Aluminum rail instead of steel T-rail
- No separate machine room required
- No remote mounted controller
- On board diagnostic troubleshooting LED light
- 20" Wide x 20" Deep x 30" High – 200 lbs capacity
- 24" Wide x 24" Deep x 30" High – 200 lbs capacity
- 30" Wide x 30" Deep x 36" High – 275 lbs capacity
- Optional stainless steel car
- Warranty 5 years on motor and gear, and 2 years on all other parts
Specs
- Car Size - Standard: 20Wx20Dx30H or 24Wx24Dx30H
- Car Size - Optional: 30Wx30Dx36H
- Max Travel - Standard: 10'
- Stops - Standard: 2
- Max Travel - Optional: 30'
- Stops - Optional: 3 or 4
- Weight Capacity - Standard: 200
- Weight Capacity - Optional: 275
- Stainless Steel Panel Option: Yes
- Hardwood Door Option: Yes
- Straight Through Car Option: Yes
- 90° Car Option: Yes
