Crest HD - Stair Lift


Description

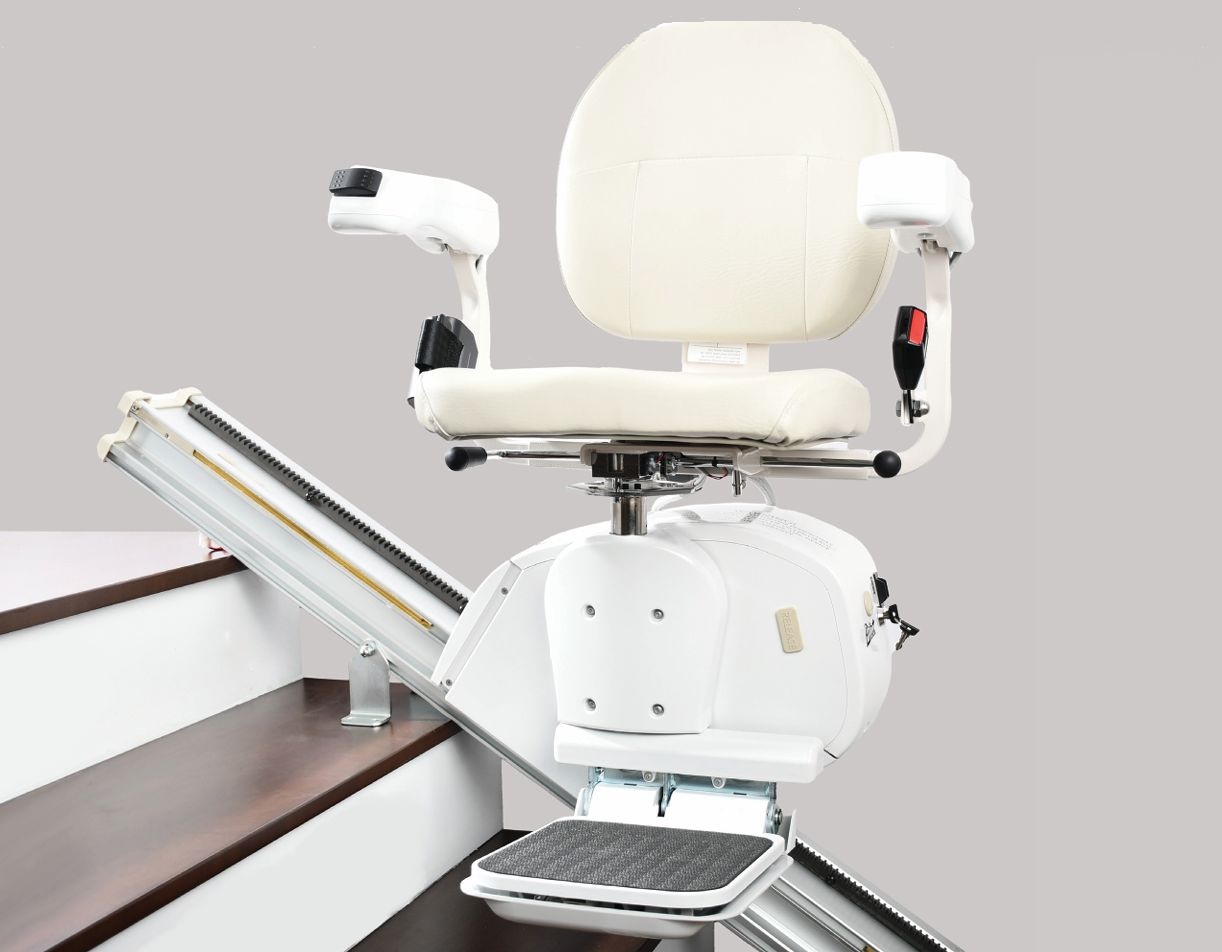

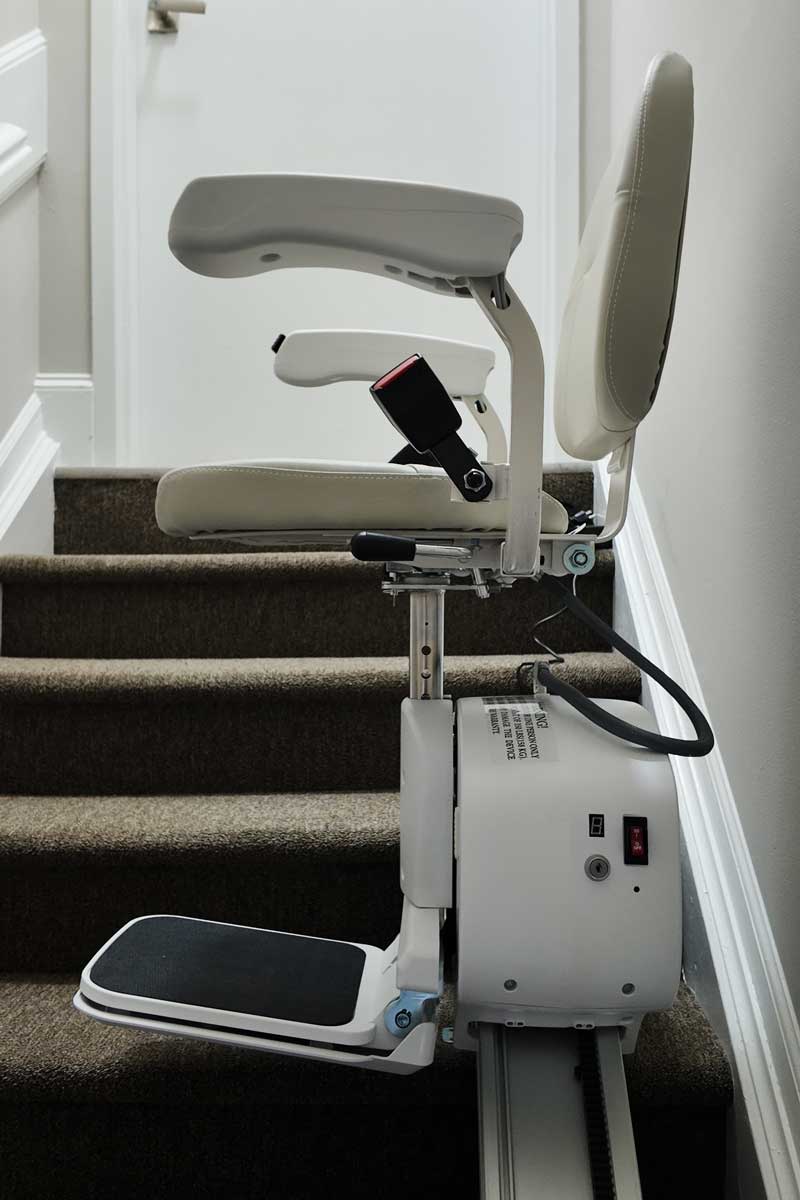

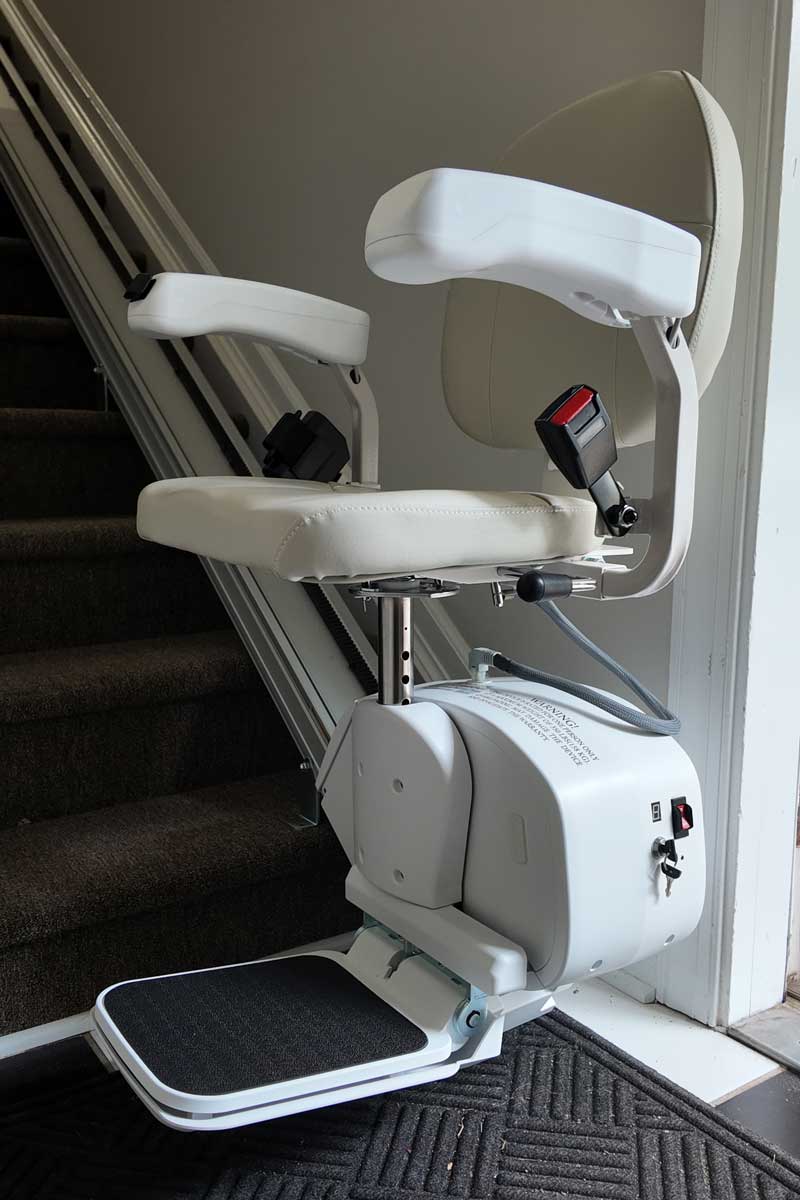

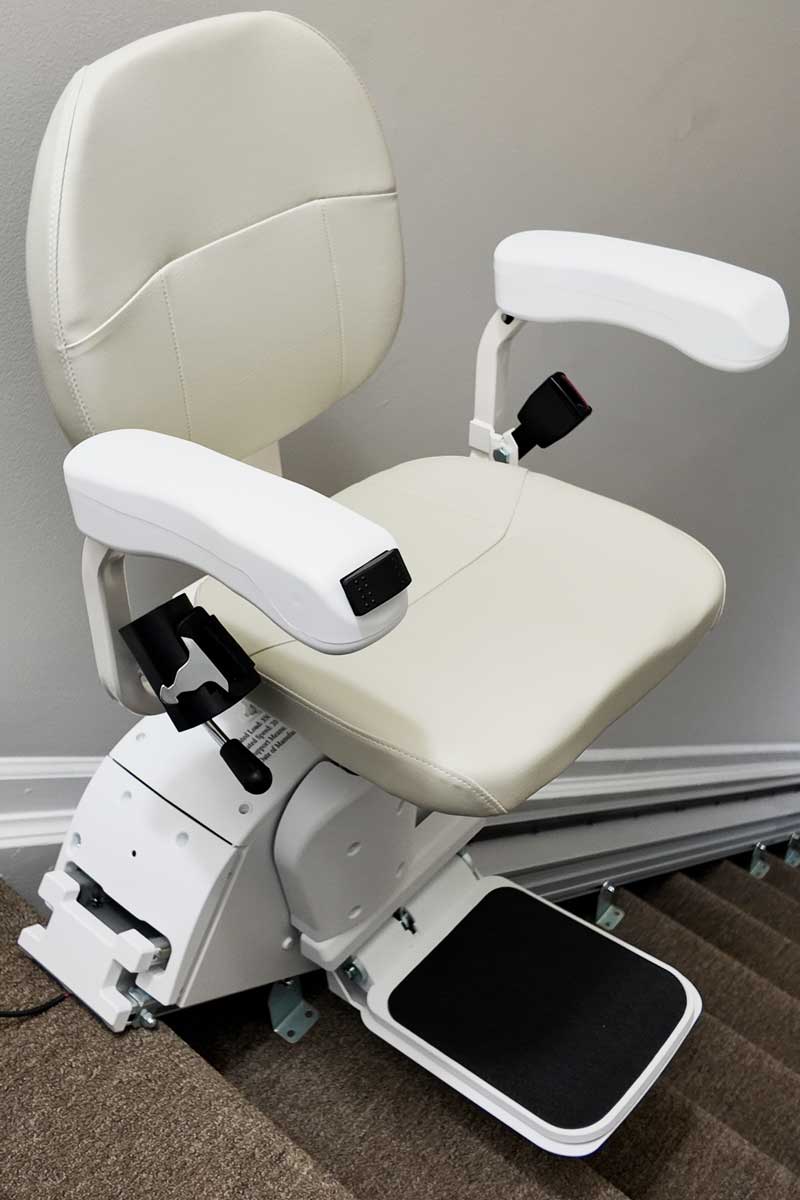

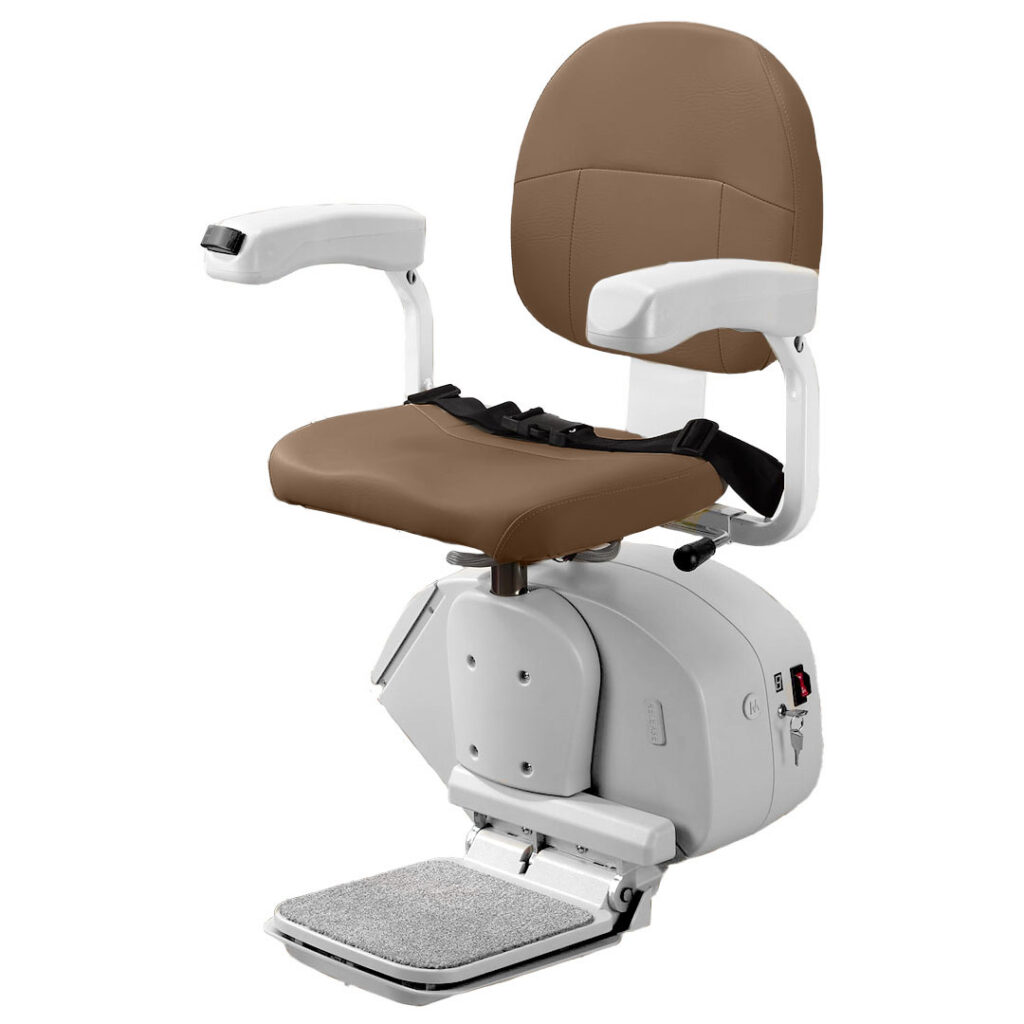

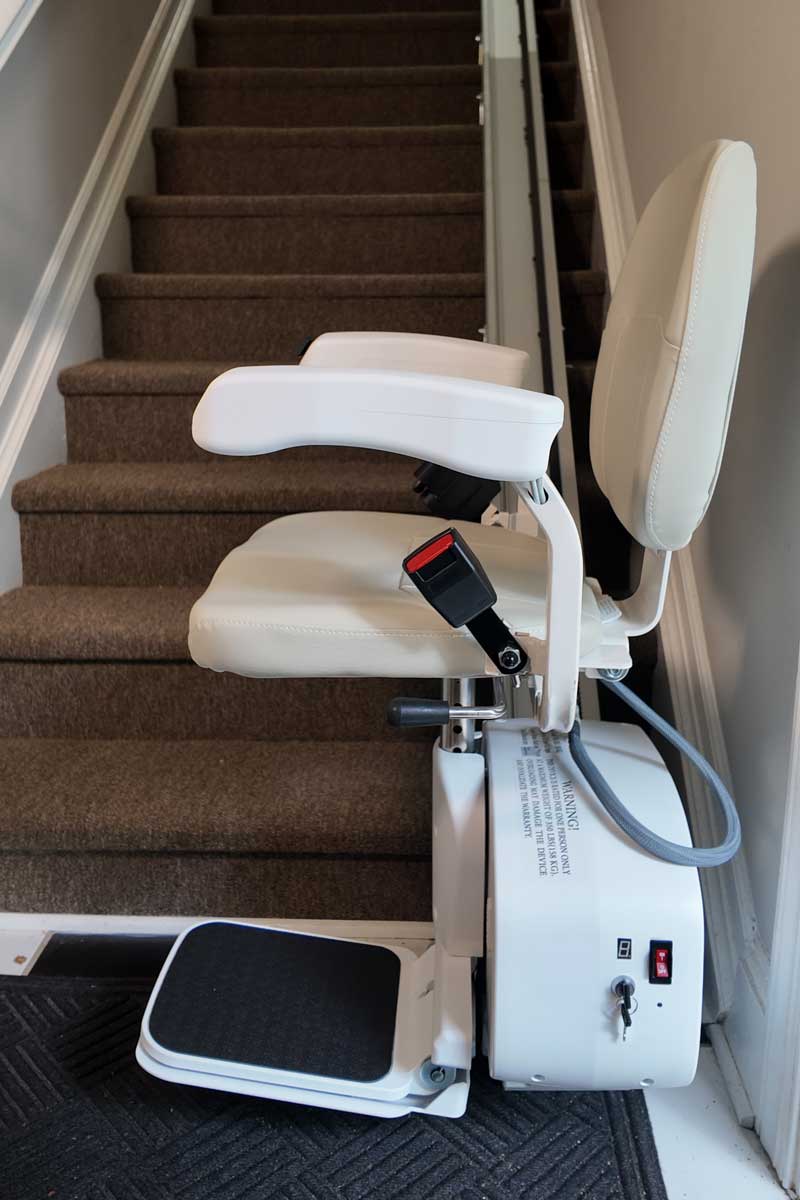

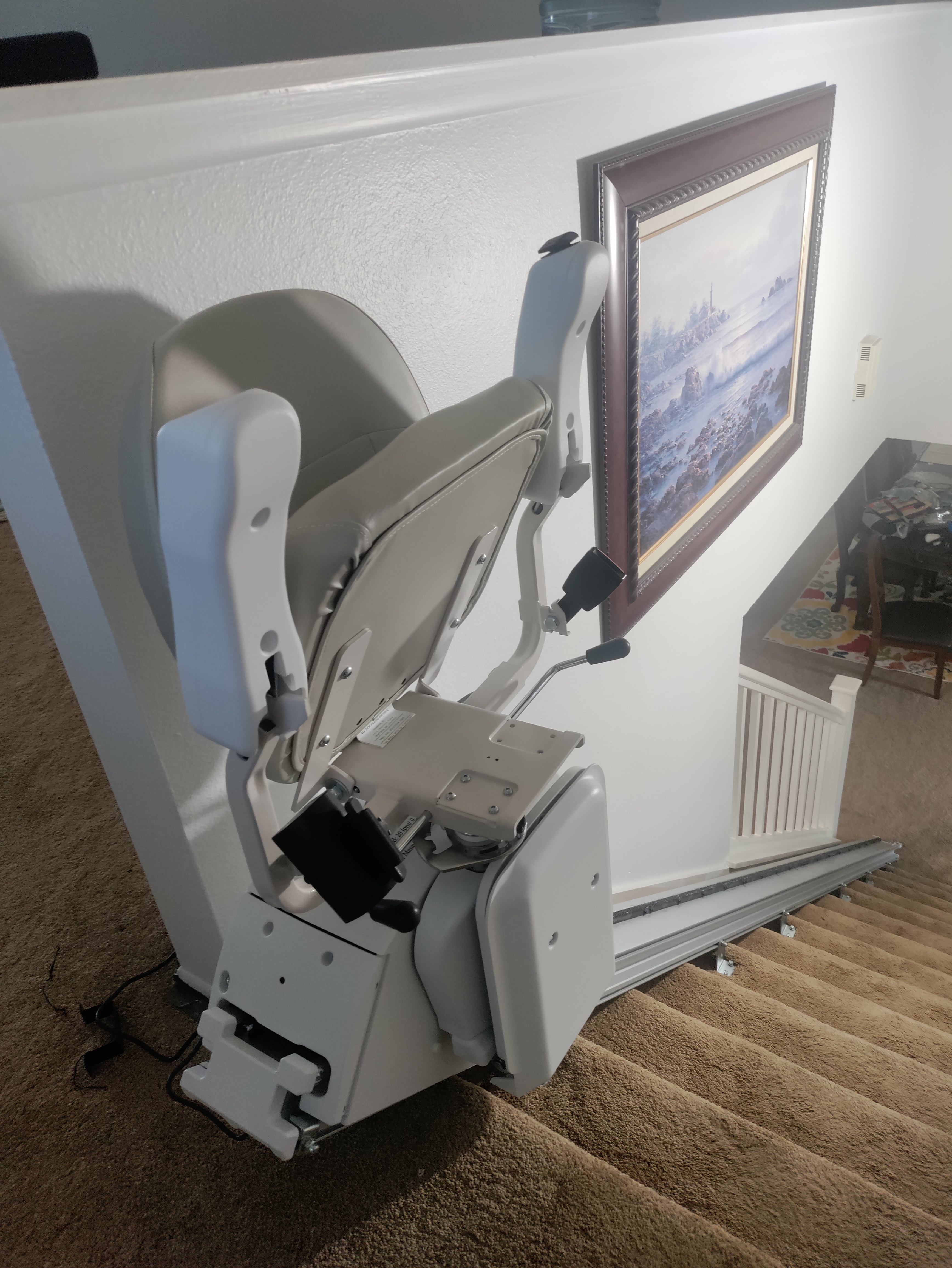

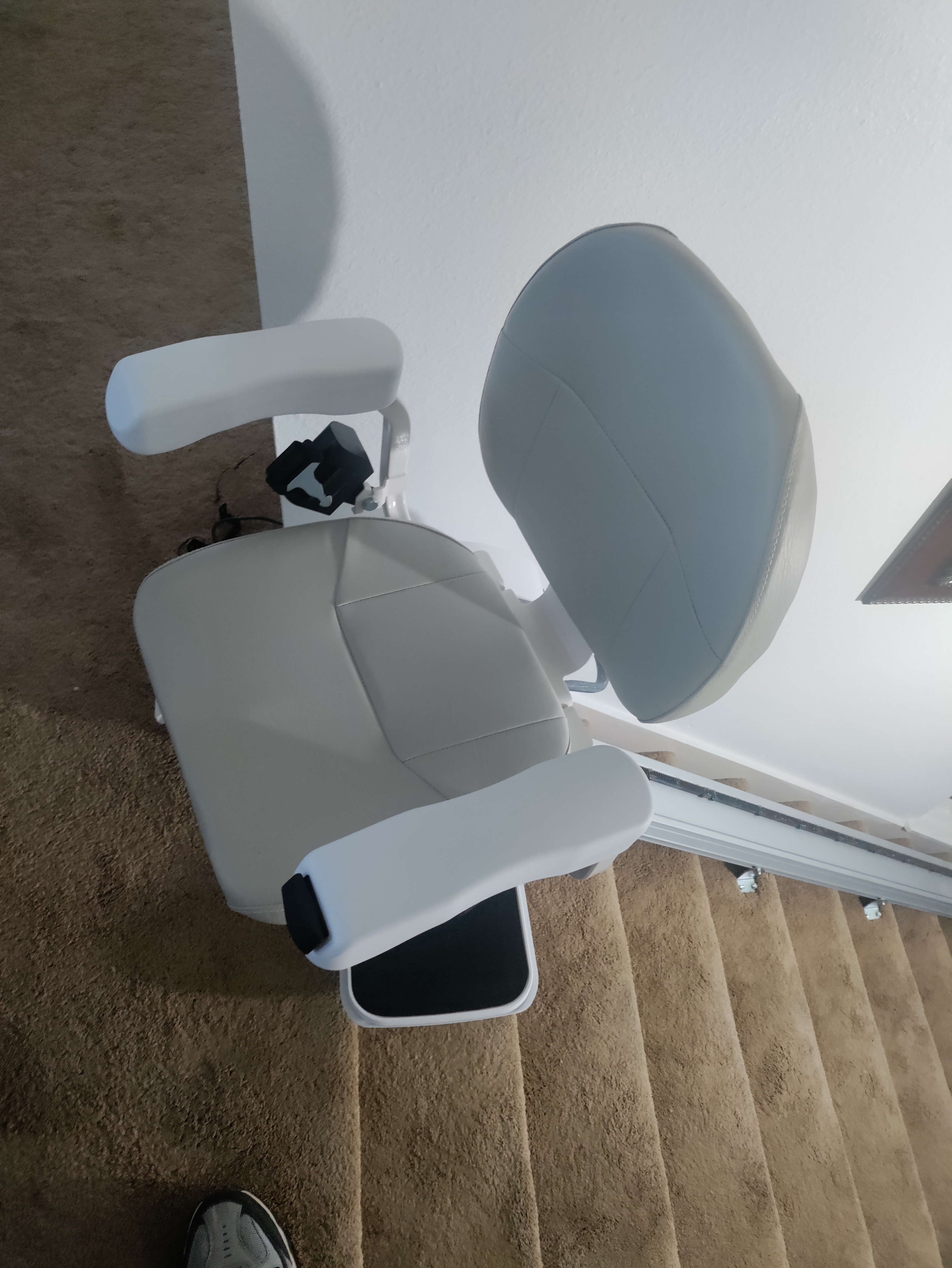

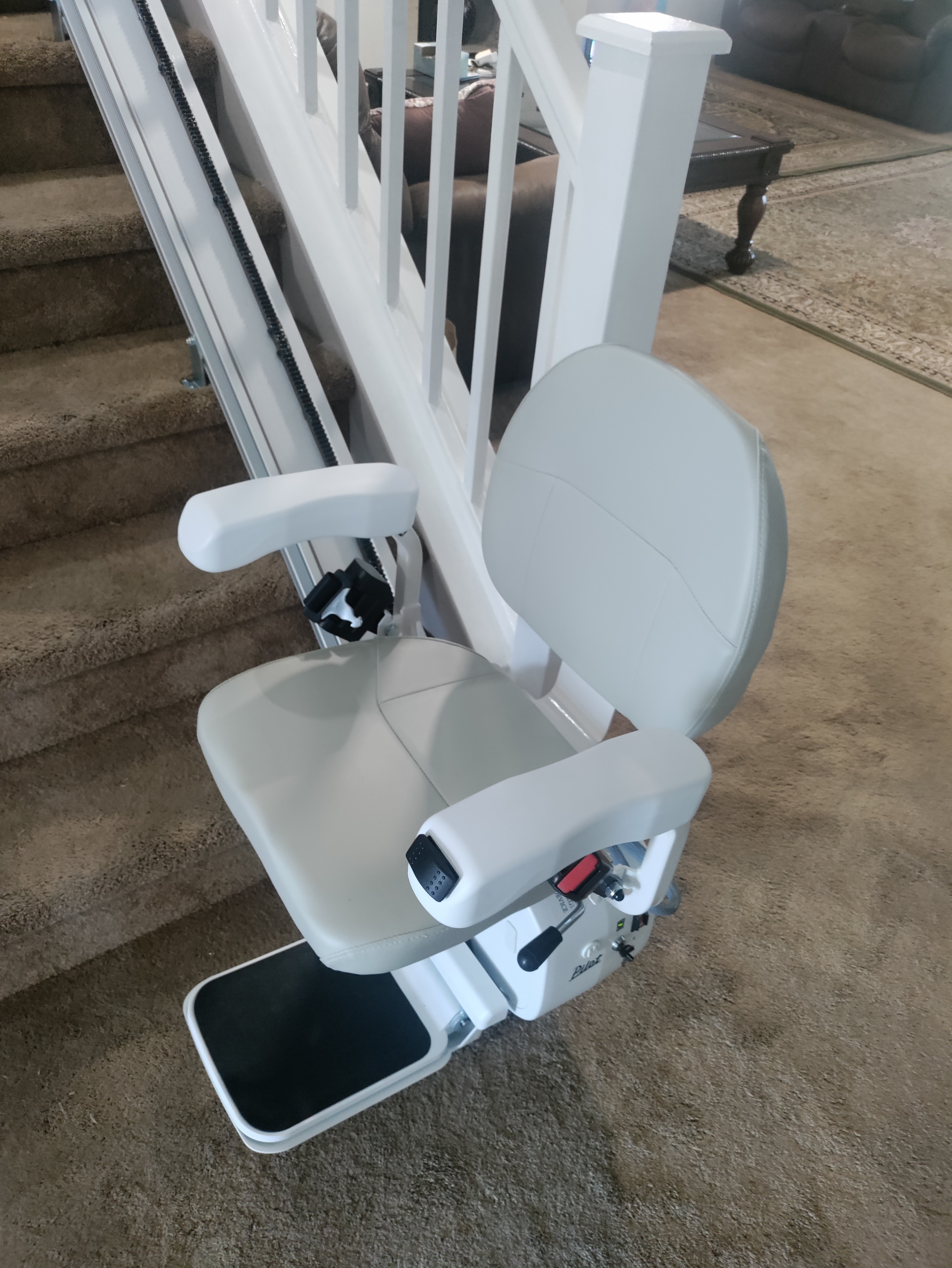

Crest HD - Stair Lift
The Crest HD Stair Lift delivers exceptional versatility, heavy-duty performance, and advanced safety features. With a 350 lb. weight capacity, its universal design supports both left and right-side installation, while adjustable armrest width, seat height, and toggle control offer customizable comfort. A 2-position swivel seat ensures safe and easy transfers.

Functionality is enhanced with extra-long charging stations and 9Ah batteries, capable of lasting up to 20 days in power-saving sleep mode during outages. Maintenance is streamlined with a battery test point, diagnostic display, and easy-access service panels.

Robust safety features include:
  • 5 directional safety sensors
  • Retractable seat belt
  • Armrest and seat position sensors
  • Over-speed governor
  • Electro-mechanical brake system
  • Key switch for controlled access
An optional automatic hinged rail ensures safe clearance at the bottom of the stairs, making the Crest HD an ideal solution for both performance and peace of mind.

Note: Capacity is derated to 300lbs if installed at 46 to 55 degree angle or adding the hinged rail option.
*CT, MI and WA residents need to check their local code laws to ensure proper compliance.



Specs
  • Drive TypeRack and Pinion
  • Battery PoweredYes
  • Self InstallableYes
  • Basic Installation IncludedNo
  • Standard Capacity350 lb
  • Max Track Length, Standard16'
  • Max Track Length, Optional32'
  • Seat Width16"
  • Seat Depth16.36"
  • Swivel SeatYes
  • Swivel Seat Rotation90 Degrees at top landing
  • Flip-Up SeatYes
  • Flip-Up ArmrestsYes
  • Constant Pressure ControlsYes
  • Footrest Safety SensorYes
  • Unit Footprint, Non Folded23"
  • Unit Footprint, Folded13"
  • Call Stations Included2 Wireless
  • Seat Width, Max20"
  • Rail Angle, Min25°
  • Rail Angle, Max55°
  • Digital Diagnostics DisplayYes
  • Key LockYes
